Technology focus: 10x Genomics Visium

This notebook will present a rough overview of the plotting functionalities that spatialdata implements for Visium data.

Loading the data

Please download the data from here: Visium dataset and rename it (eventually using symlinks) to visium_brain.zarr.

visium_zarr_path = "./visium_brain.zarr"

import spatialdata as sd

visium_sdata = sd.read_zarr(visium_zarr_path)
visium_sdata

SpatialData object with:
├── Images
│     ├── 'ST8059050_image': SpatialImage[cyx] (3, 2000, 1968)
│     └── 'ST8059051_image': SpatialImage[cyx] (3, 2000, 1963)
├── Shapes
│     ├── 'ST8059050_shapes': GeoDataFrame shape: (3497, 2) (2D shapes)
│     └── 'ST8059051_shapes': GeoDataFrame shape: (2409, 2) (2D shapes)
└── Table
      └── AnnData object with n_obs × n_vars = 5906 × 31053
    obs: 'in_tissue', 'array_row', 'array_col', 'annotating', 'library', 'spot_id'
    uns: 'spatialdata_attrs': AnnData (5906, 31053)
with coordinate systems:
▸ 'ST8059050', with elements:
        ST8059050_image (Images), ST8059050_shapes (Shapes)
▸ 'ST8059051', with elements:
        ST8059051_image (Images), ST8059051_shapes (Shapes)

Visualise the data

We’re going to create a naiive visualisation of the data, overlaying the Visium spots and the tissue images. For this, we need to load the spatialdata_plot library which extends the sd.SpatialData object with the .pl module.

import spatialdata_plot

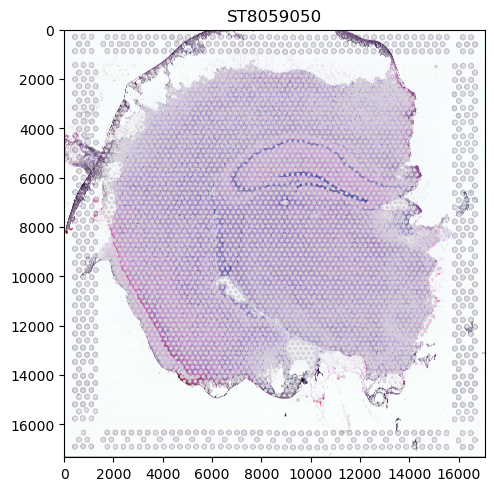

visium_sdata.pl.render_images().pl.render_shapes().pl.show("ST8059050")

We can see that the data contains two coordinate systems (ST8059050 and ST8059052) with image and spot information each. In SpatialData, these spots are represented as Shapes. When giving no further parameters, one panel is generated per coordinate system with the members that have been specified in the function call. We can see that the spots are aligned to the tissue representation which is also respected by the plotting logic.

However, the spots are all grey since we have not provided any information on what they should encode. Such information can be found in the Table attribute (which is an anndata.AnnData table) of the SpatialData object, either in the data itself or the obs attribute.

visium_sdata.table.to_df().sum(axis=0).sort_values(ascending=False).head(10)
# We will select some of the highly expressed genes for this example

mt-Co3     3445329.0
mt-Co1     3214796.0
mt-Atp6    2351509.0
mt-Co2     2264612.0
mt-Cytb    1439108.0
mt-Nd4     1223255.0
mt-Nd1     1067596.0
mt-Nd2      972418.0
Ttr         971327.0
Fth1        764443.0
dtype: float32

visium_sdata.table.obs.head(3)

	in_tissue	array_row	array_col	annotating	library	spot_id
AAACAAGTATCTCCCA-1	1	50	102	ST8059051_shapes	ST8059051	0
AAACAGAGCGACTCCT-1	1	14	94	ST8059051_shapes	ST8059051	1
AAACCGGGTAGGTACC-1	1	42	28	ST8059051_shapes	ST8059051	2

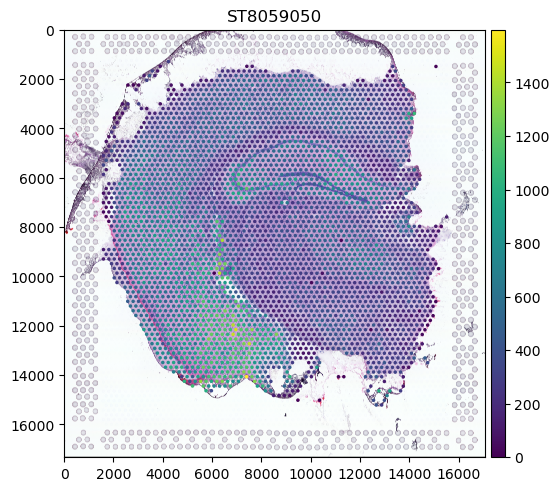

Color the visium spots by gene expression

To use this information in our plot, we pass the name of the column by which we want to color our expression to color. Furthermore, we are going to subset the data to only one coordinate system.

(visium_sdata.pp.get_elements("ST8059050").pl.render_images().pl.render_shapes(color="mt-Co3").pl.show())

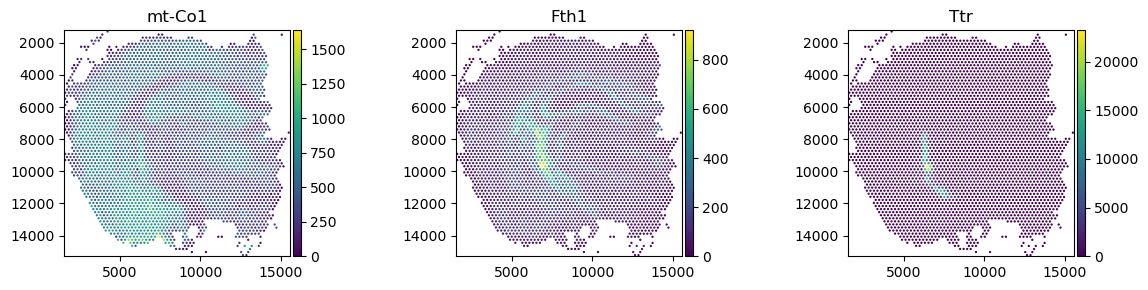

We can also provide ax objects to spatialdata_plot for further customisation.

import matplotlib.pyplot as plt

fig, axs = plt.subplots(ncols=3, nrows=1, figsize=(12, 3))

visium_sdata_subset = visium_sdata.pp.get_elements("ST8059050")

visium_sdata_subset.pl.render_shapes(color="mt-Co1").pl.show(ax=axs[0], title="mt-Co1")

visium_sdata_subset.pl.render_shapes(color="Fth1").pl.show(ax=axs[1], title="Fth1")

visium_sdata_subset.pl.render_shapes(color="Ttr").pl.show(ax=axs[2], title="Ttr")

plt.tight_layout()
